Beyond the Design: The Critical Role of As-Built Documentation and System Studies for GCC Facility Handover & Maintenance

The Handover Black Hole

Picture this: It is 2:00 AM on a Tuesday. A critical fault has tripped the main breaker in your facility, halting production and costing thousands of dollars per hour. The facility manager rushes to the substation, flashlight in hand, and pulls out the “As-Built” Single-Line Diagram (SLD) to trace the fault.

But there is a problem. The diagram shows a breaker that isn’t there. The cable sizes listed don’t match what is physically installed. The labeling is different. Confusion sets in, delaying the restoration of power by hours.

This scenario is the “Handover Black Hole.” The true test of a project’s success is not the ribbon-cutting ceremony or the initial commissioning; it is five years later, during troubleshooting, expansion, or an emergency. Incomplete or inaccurate electrical as-built documentation creates a massive, hidden operational risk that often goes unnoticed until disaster strikes.

What is True As-Built Documentation? (More Than Just PDFs)

Many contractors treat as-builts as a final paperwork hurdle, a stack of PDFs to be handed over and forgotten. This is a dangerous misconception. True as-built documentation is the living DNA of your electrical system. It must be a dynamic, accurate representation of the facility as it currently exists.

A complete package includes:

• Updated & Accurate Drawings: Not just the design drawings stamped “As-Built,” but drawings that reflect every field change, red-line markup, and last-minute modification made during construction.
• Equipment Database: A detailed register containing specific model numbers, serial numbers, manufacture dates, and warranty information for every major asset.
• Validated System Studies: This is often missed. The Load Flow, Short-Circuit, and Protection Coordination studies must be re-run using the actual data of the installed equipment (e.g., cable lengths, transformer impedances), not the estimated design data.

The High Cost of “As-Built Gaps” in GCC Operations

Failing to secure accurate documentation during the facility handover phase imposes a “tax” on your operations for the life of the asset.

• Safety Risks: If your Arc Flash study wasn’t updated with as-built fault levels, your safety labels are wrong. A worker could be wearing insufficient PPE because the label underestimates the danger.
• Extended Downtime: As described in the intro, troubleshooting without a map is blind guesswork. Accurate drawings cut mean-time-to-repair (MTTR) significantly.
• Failed Audits: Whether it’s a civil defense inspection, an ISO audit, or an insurance review, the inability to prove the current state of your system can lead to fines or coverage denials.
• Botched Expansions: Planning to add a new production line? If your load calculations are based on outdated design assumptions rather than the as-built reality, you risk overloading transformers or cables, leading to immediate failure upon connection.

The Essential Handover Package: What to Demand from Your Contractor

As a facility owner or manager, you have the leverage before the final payment is released. Use this electrical handover checklist to ensure you receive what you paid for.

• ✅ Drawings (CAD & PDF): Demand the native AutoCAD (DWG) files, not just locked PDFs. You will need these editable files for future modifications. Ensure all revisions are clearly marked.
• ✅ Study Reports & Native Models: Do not just accept a PDF report. Request the native model files (e.g., ETAP .oti, SKM .prj). This allows your future engineering partners to update the study without rebuilding the entire system model from scratch.
• ✅ Settings Sheets: A complete, signed-off log of all relay pickup settings, time dials, and breaker trip unit adjustments as they were left at commissioning.
• ✅ Asset Register: A comprehensive spreadsheet listing all major components, cross-referenced with the drawings.

How Elecwatts Bridges the Gap: The Commissioning & Handover Audit

Ideally, contractors would deliver perfect documentation every time. In reality, the rush to finish often leads to errors. This is where Elecwatts steps in as your advocate.

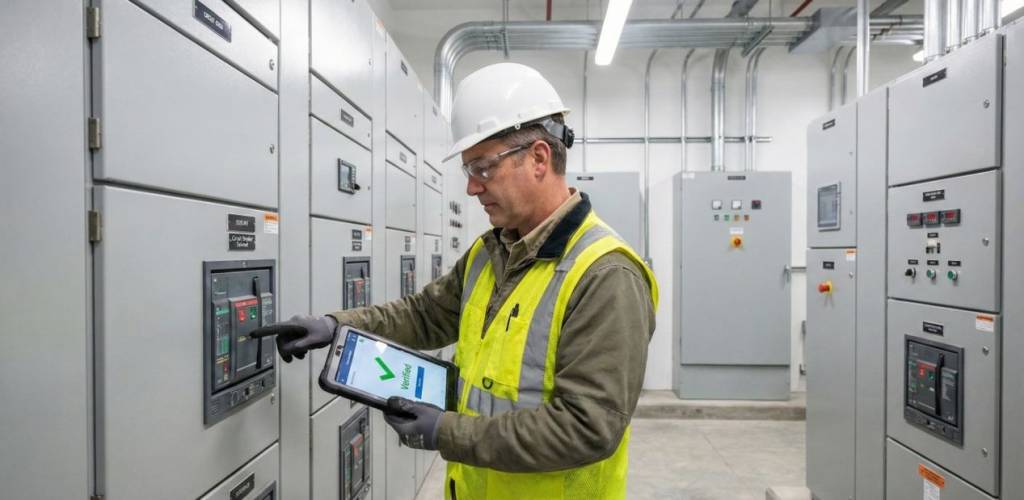

We provide an independent Commissioning & Handover Audit service where we:

1. Audit Submissions: We review the contractor’s as-built drawings against the original design and red-line markups to ensure nothing was missed.
2. Field-Verify: Our engineers go on-site to spot-check critical connections, breaker settings, and cable labels to verify they match the documentation.
3. Validate System Studies: We take the contractor’s data and re-run the critical safety studies (Short Circuit, Arc Flash) to confirm that the installed system is actually safe and compliant.
4. Deliver a “Facility Health Dossier”: You receive a certified, operational-grade package that gives you total visibility and control over your asset.

Conclusion: Protect Your Long-Term Asset Value

The handover phase represents the final 1% of the project effort, but it determines 100% of the asset’s future usability, safety, and maintainability. Do not let the relief of project completion blind you to the necessity of accurate data. By insisting on proper electrical system studies and documentation now, you are insuring your facility against future chaos.

Frequently Asked Questions (FAQ)

1. Why do I need the native software files (like ETAP or SKM) and not just the PDF report?
The PDF is a static snapshot in time. The native file is the “digital twin” of your electrical system. If you want to add a load or update the study in two years, having the native file saves you the massive cost of paying an engineer to rebuild the entire model from scratch.

2. What is the difference between “Design” drawings and “As-Built” drawings?
Design drawings show the intent, what was planned. As-Built drawings show the reality, what was actually installed. Construction often requires deviations from the plan (e.g., re-routing a cable, changing a breaker brand). As-builts capture these changes.

3. Can’t we just update the drawings later when we have time?
Experience shows that “later” never comes. Once the contractor leaves and the facility is live, knowledge is lost. Trying to recreate as-builts years later requires expensive site surveys and shutdowns to trace circuits. It is exponentially cheaper to get it right at handover.

4. How does inaccurate documentation affect Arc Flash safety?
Arc flash energy is calculated based on specific cable lengths and fault currents. If the as-built cable lengths are different from the design but the study wasn’t updated, the calculated incident energy could be lower than reality. This might lead to a worker wearing a Category 2 suit when the hazard actually requires Category 4, risking severe injury.

5. Is an asset register really necessary for electrical systems?
Yes. For maintenance planning (CMMS), you need to know exactly what equipment you have. An accurate asset register allows you to track warranty expiration dates, schedule preventive maintenance, and manage spare parts inventory effectively.
