Condition-Based Risk Scoring: Prioritizing Electrical Asset Interventions Across Multi-Site GCC Portfolio

In the world of facility management and industrial operations, there is an uncomfortable truth: 80% of unplanned downtime is caused by just 20% of the assets. Even more frustrating is the realization that the vast majority of these failures, upwards of 90% according to reliability studies, are not random events. They are the culmination of detectable, progressive degradation.

A loose connection in a switchgear panel generates heat for months before it melts. Ideally, oil in a transformer degrades chemically for years before the unit arcs. Yet, many organizations in the Gulf still rely on calendar-based maintenance, servicing equipment every 12 months regardless of its actual health. This approach is doubly inefficient: resources are wasted maintaining healthy assets, while degrading assets often fail in the 11th month, just weeks before their scheduled check-up.

For organizations managing dispersed portfolios across the GCC, from manufacturing plants in Jubail to logistics hubs in Jebel Ali, the stakes are higher. You cannot be everywhere at once. To prevent catastrophic failure, you must shift from a “Time-Based” mentality to a Condition-Based Risk Scoring framework. This approach uses data to scientifically answer the most critical question in asset management: “If I only have the budget to fix one thing today, what should it be?”

The GCC Asset Portfolio Challenge: Geographic Dispersion and Climate Extremes

Managing a single factory is difficult. Managing a multi-site asset management GCC portfolio spread across borders and climate zones introduces exponential complexity.

The Tyranny of Distance

An Operations Director sitting in a Dubai HQ might oversee assets in:

• The Coastal Humid Zone: (e.g., Dammam, Abu Dhabi) where humidity creates highly corrosive, saline environments that attack outdoor terminations and steel enclosures.
• The Inland Desert Zone: (e.g., Riyadh, Al Ain) where extreme dry heat and fine dust accumulation cause overheating and mechanical jamming of breakers.
• The Isolated Industrial Zone: (e.g., Ras Laffan, Duqm) where logistics for spare parts can take weeks, making asset reliability non-negotiable.

Regulatory Fragmentation

While the laws of physics stay the same, the rules change. An asset management strategy must navigate different regulatory landscapes:

• UAE: Strict civil defense requirements for fire safety systems in electrical rooms.
• Saudi Arabia: Increasing adherence to SASO standards and efficiency regulations.
• Qatar: Specific Kahramaa regulations for grid connection assets.
  A standardized risk scoring model provides a unified language that cuts through these geographical and regulatory divides, allowing for a true “Apples-to-Apples” comparison of portfolio risk.

Data Foundation 1: The Criticality Matrix – Business Impact vs. Failure Probability

Before we look at the health of the machine, we must understand the importance of its job. This is the Asset Criticality Assessment. Not all transformers are created equal; a 500kVA unit powering the administration building is far less critical than a 500kVA unit powering the main production line furnace.

The Four Dimensions of Criticality

To build a robust Criticality Score (typically 1-5), evaluate each asset against:

1. Operational Impact: Does failure stop the whole plant (Score 5) or just a lighting circuit (Score 1)?
2. Safety Impact: Does failure pose an immediate arc-flash or fire risk to personnel? (Crucial in manned GCC facilities).
3. Environmental Impact: Could failure lead to an SF6 gas leak or an oil spill?
4. Financial Impact: What is the cost per hour of downtime? In GCC petrochemicals, this can exceed $100k/hour.

The GCC Weighting

In this region, Safety often carries the highest weighting due to the extreme consequences of electrical fires in high-temperature environments. By mapping every asset in your portfolio against these criteria, you establish the “Consequence of Failure” (CoF).

Data Foundation 2: Condition Assessment Methodologies and Scoring

The second half of the equation is the “Probability of Failure” (PoF). This is derived from the physical condition of the asset, determined through rigorous condition assessment methodologies.

Beyond Visual Inspection

Walking around with a clipboard is no longer enough. Reliable scoring requires diagnostic technology:

• Thermography: Detecting hotspots in busbars and terminations. In the GCC summer, distinguishing between load-generated heat and ambient heat requires certified thermographers.
• Partial Discharge (PD) Testing: Listening for the microscopic “crackling” of insulation breaking down inside MV switchgear.
• Dissolved Gas Analysis (DGA): For oil-filled transformers, this is a blood test. High levels of acetylene indicate internal arcing; high moisture indicates seal failure (common in humid Gulf summers).

The Health Index Scale

Transform these raw test results into a standardized electrical engineering services scoring system, typically a Health Index from 1 to 5:

• 1 (Excellent): As new. No defects.
• 2 (Good): Minor aging signs. No operational restriction.
• 3 (Fair): Significant degradation. Monitor frequently.
• 4 (Poor): Impending failure likely. Plan intervention.
• 5 (Very Poor): End of life. Immediate replacement required.

The Risk Scoring Algorithm: Combining Criticality and Condition

Now, we combine the two foundations to calculate the Risk Score.

$$Risk Score = Criticality (CoF) \times Condition (PoF)$$

The Algorithm in Action

Let’s compare two assets in a UAE industrial group:

• Asset A: Main Incomer Switchgear (Criticality 5). It shows signs of minor heating (Condition 2).
  • Risk Score: $5 \times 2 = 10$
• Asset B: Warehouse Lighting Panel (Criticality 1). It has a severe code violation and is overheating (Condition 5).
  • Risk Score: $1 \times 5 = 5$

The Insight: Despite Asset B being in terrible condition (“on fire”), Asset A is still the higher priority for the business because its failure would be catastrophic. Asset B can fail with minimal impact. This algorithmic approach prevents the common mistake of prioritizing easy, low-value repairs over complex, high-value risks.

Technology Enablers: IoT Sensors, Drones, and Digital Twins

In a multi-site GCC portfolio, getting real-time condition data is the biggest hurdle. Sending teams to remote sites for daily checks is impossible. Technology bridges this gap.

IoT Asset Monitoring

Wireless, self-powered sensors are revolutionizing IoT asset monitoring GCC.

• Thermal Sensors: Clamped directly onto busbars inside switchgear, reporting 24/7 temperature data.
• Benefit: They catch the intermittent overheating caused by peak summer loads that a one-time annual thermography scan might miss.

Drone Inspections

For overhead lines or vast solar arrays in desert locations, drones equipped with thermal cameras can survey assets in minutes that would take humans days. They are safer and unaffected by the extreme heat.

The Digital Twin

This is the ultimate aggregator. A digital twin of electrical assets combines the static design data (age, spec) with dynamic sensor data to update the Risk Score in real-time. If a sensor detects a temperature spike in a transformer in Fujairah, the Digital Twin automatically recalculates the risk and alerts the HQ in Dubai.

Intervention Prioritization: From Risk Scores to Action Plans

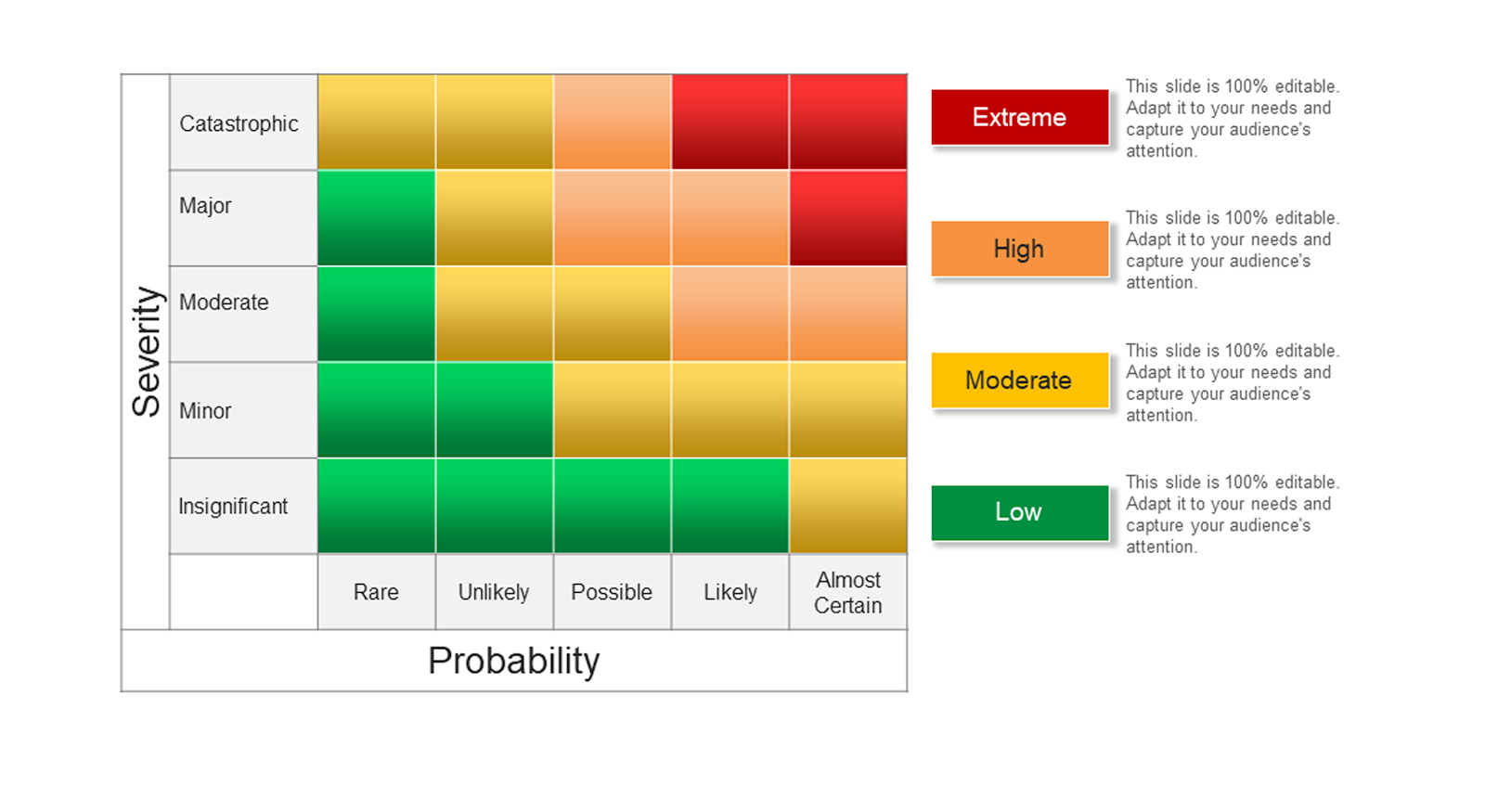

A score is just a number until it drives action. The final step is translating the Risk Matrix into a maintenance prioritization framework.

The 4-Tier Action Plan

1. Emergency (Risk Score 20-25): Immediate intervention required. Mobilize spares. Shift production load if possible.
2. Urgent (Risk Score 15-19): Plan repair within 30 days. Increase monitoring frequency (e.g., daily thermal checks).
3. Planned (Risk Score 8-14): Schedule repair during the next planned shutdown. Order long-lead parts now.
4. Monitor (Risk Score 1-7): Continue routine condition monitoring. No proactive maintenance required.

Budget Optimization

This framework is a powerful tool for budget defense. Instead of asking Finance for “$500k for maintenance,” you present a business case: “We have $1.2M of ‘Extreme Risk’ assets. Allocating $500k allows us to mitigate the top 10 Net zero risk management solutions, reducing our probable loss exposure by $4M.”

The Audit Protocol: Standardizing Assessments Across GCC Sites

Garbage in, garbage out. If the technician in Oman rates a “condition 3” differently than the technician in Bahrain, the portfolio view is useless. You need electrical audit standardization.

The Standardized Checklist

Move away from free-text reports. Use strict, drop-down checklists for every asset class.

• Example (Transformer): Oil Level (OK/Low), Silica Gel Color (Blue/Pink), Bushing Cleanliness (Clean/Dirty).
• Auditor Qualification: Ensure all auditors hold relevant certifications (e.g., Level 1 Thermography, ASNT) to ensure competency consistency.

Mobile Data Collection

Paper checklists are obsolete. Use mobile apps that force data synchronization.

• Geolocation: Proves the technician was at the asset.
• Mandatory Photos: The app forces a photo of the nameplate and the defect before the audit can be submitted.
• Offline Capability: Crucial for remote GCC sites with poor signal.

Performance Tracking: Measuring Risk Reduction and ROI

An asset management program must prove its worth. Track these asset management KPIs:

• Risk Reduction Index: The total sum of risk scores across the portfolio. This number should trend down month-over-month.
• Emergency Work Order Ratio: The percentage of maintenance work that is reactive vs. planned. World-class is <10%.
• Mean Time Between Failures (MTBF): Should increase as proactive interventions catch failures early.
• Audit Compliance: % of assets audited on schedule.

Benchmarking against ISO 55000 (Asset Management) standards adds credibility and provides a roadmap for continuous maturity improvement.

Implementation Roadmap: 12-Month Rollout Plan for GCC Organizations

Transforming a reactive culture takes time. Here is a realistic rollout plan.

• Q1: Discovery & Pilot: Select one site as a pilot. Build the Criticality Matrix. Conduct a baseline audit to establish initial Condition Scores.
• Q2: Standardization & Tooling: Deploy the mobile audit tool. Train site teams on the new scoring methodology. Define the Risk Scoring Algorithm weights.
• Q3: Portfolio Rollout: Roll out audits to all remaining sites. Aggregate data into a central dashboard. Identify the “Top 10” risks across the group.
• Q4: Optimization & Integration: Integrate risk scores into the ERP/CMMS system (SAP, Maximo). Set next year’s budget based on the Risk Profile. Review KPIs and adjust the algorithm if necessary.

Frequently Asked Questions (FAQ)

1. Can we implement condition-based maintenance without buying expensive IoT sensors?

Yes. While IoT sensors provide real-time data, you can start with a manual condition-based program. Increase the frequency of manual inspections (thermography, visual checks) for critical assets. The core value comes from the logic of the risk scoring, not just the frequency of the data.

2. How do we determine the “Criticality” of an asset that affects multiple processes?

Always score based on the worst-case scenario. If a main breaker feeds both a non-critical warehouse and a critical server room, its criticality is determined by the server room (High).

3. Does this approach work for older, legacy plants?

It is actually more valuable for legacy plants. In an aging facility, you cannot replace everything. Risk scoring helps you surgically identify which aging assets are dangerous (high risk) and which are aging gracefully (monitor only), allowing you to sweat the assets safely for longer.

4. What is the biggest challenge in rolling this out across the GCC?

Data consistency. Different sites often have different naming conventions for assets (e.g., “TRF-01” vs “Main Trans”). Cleaning up the Master Asset List (MAL) so that data can be aggregated is often the first and hardest step.

5. How often should the Risk Score be updated?

Criticality scores are relatively static (updated annually). Condition scores should be updated every time a new inspection or test is performed. Ideally, your dashboard updates the Risk Score automatically whenever new audit data is synced.

Conclusion: From Firefighting to Strategic Control

For too long, electrical asset management in the GCC has been a game of firefighting, waiting for the inevitable failure in the summer heat and scrambling to fix it. This is a choice, not a necessity. By adopting a Condition-Based Risk Scoring framework, organizations can seize control of their destiny.

It allows you to view your portfolio not as a collection of potential problems, but as a managed ecosystem of risks. It empowers you to direct your limited budget to where it creates the most value, ensuring safety, protecting production, and extending the life of your critical infrastructure.
