As the United Arab Emirates accelerates its transition toward renewable energy, businesses are aggressively pursuing independent power generation to slash utility bills and meet corporate sustainability targets. When a business decides to integrate commercial solar UAE solutions, the very first decision is the most critical: where to put the panels. Navigating this initial choice requires expert electrical engineering consulting to evaluate the complex physical and financial tradeoffs unique to the region.
The primary dilemma pits the maximization of existing real estate against the pursuit of peak generation efficiency. The choice between rooftop vs ground mounted solar is rarely straightforward. Utilizing unused warehouse roof space seems like the obvious choice to save land costs, but it introduces severe structural, fire safety, and maintenance challenges. Conversely, securing adjacent land for a ground-mounted array offers unhindered scale and optimal yields, but demands significantly higher initial capital for civil works and high-voltage grid connections. This guide breaks down the structural and electrical realities of both configurations to help UAE developers make an informed, profitable solar strategy decision.
Structural Load and Civil Assessment (Rooftop)
Installing a massive solar array on a commercial building fundamentally alters the structural dynamics of the roof. Before a single solar panel is ordered, a rigorous civil engineering assessment is an absolute necessity.
The primary concern is the solar roof structural load. Standard corrugated steel warehouse roofs in the UAE were designed to hold out the weather, not to support tons of glass, aluminum, and intense wind uplift forces.
- Penetrating Mounts: These are bolted directly into the building’s structural purlins. While they offer the highest wind resistance, they puncture the roof’s waterproofing membrane, requiring meticulous sealing to prevent leaks during the rare but heavy UAE winter rains.
- Ballasted Systems: A ballasted solar mount UAE design uses heavy concrete blocks to hold the panels down via gravity, entirely avoiding roof penetrations. However, this adds massive “dead load” (weight) to the roof. Structural engineers must mathematically prove the roof can support this immense weight alongside dynamic wind loads without collapsing.

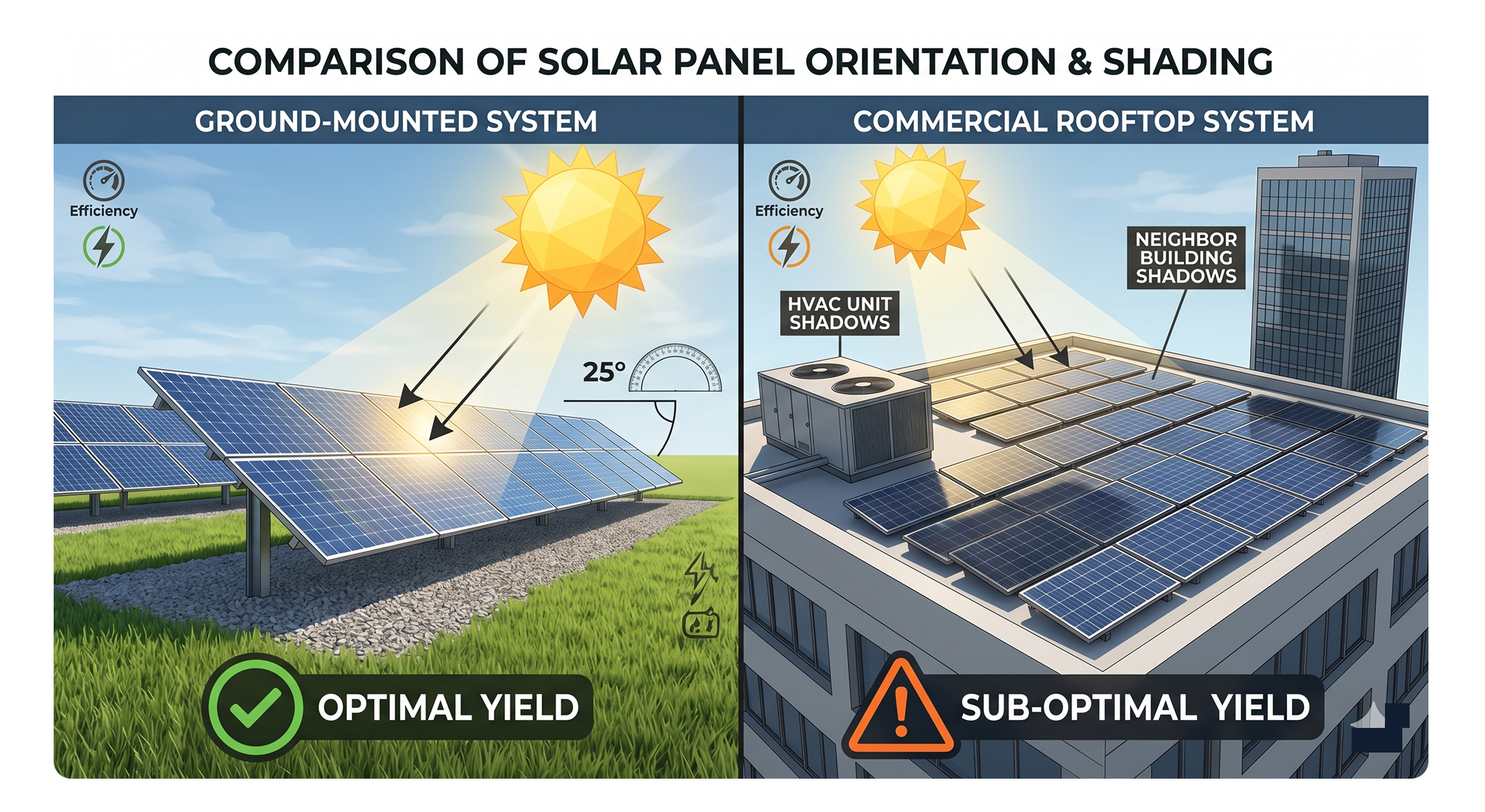

Space Constraints and Orientation Efficiency
The physical location of the panels directly dictates their energy yield. In this category, ground-mounted systems have a distinct and undeniable advantage.
- Ground-Mounted Yields: Because they are built on open land, ground-mounted arrays can be perfectly engineered for optimal solar panel orientation UAE (facing true South) and pitched at the exact ideal angle (typically 20 to 25 degrees in Dubai) to catch the maximum amount of direct normal irradiance throughout the year.
- Rooftop Compromises: Rooftop solar is at the mercy of the building’s architecture. Panels must often be flush-mounted at low angles (5 to 10 degrees) to avoid acting as sails in the wind. Furthermore, meticulous rooftop solar shading analysis is required. The usable space is drastically reduced by HVAC chiller units, ventilation shafts, roof parapets, and the shadows cast by neighboring skyscrapers, all of which cripple the yield of standard string inverters.
Complex Cable Routing and DC Voltage Drop
Transporting the electricity from the solar panels to the inverters introduces completely different engineering challenges depending on the mounting location.
On a commercial roof, solar DC cable routing is notoriously complex. Engineers must navigate the cables safely over hot, abrasive roof surfaces, around mechanical equipment, and down vertical shafts to the main electrical room. Exposing black DC cables to the blistering UAE sun accelerates insulation degradation. Furthermore, expert Cable Design Engineering is required to mitigate rooftop voltage drop. Long, sun-baked cable runs have higher resistance, meaning valuable solar energy is lost as heat before it ever reaches the inverter. Precision sizing is required to minimize this loss and eliminate the risk of DC arc faults and roof fires.
Substation and Grid Tie Requirements (Ground-Mounted)
While ground-mounted systems avoid roof structural issues, they introduce heavy-duty electrical infrastructure requirements, significantly impacting Capital Expenditure (CAPEX).
Commercial rooftop systems are typically smaller (under 2MW) and can tie directly into the building’s existing Low Voltage (LV) distribution boards. However, a large ground mounted solar grid tie project frequently exceeds 5MW to 10MW. The existing LV panels cannot handle this massive power injection.
- The 11kV Upgrade: These massive arrays require the design and construction of a dedicated solar 11kV substation. This involves extensive trenching across the open land, procuring massive step-up transformers, installing medium-voltage switchgear, and securing highly complex grid interconnection approvals from utilities like DEWA or SEC, drastically increasing the project’s complexity and upfront costs.
Cleaning, Maintenance, and Soiling Losses
In the dusty environment of the Middle East, a solar panel that isn’t cleaned regularly is a useless piece of glass. The logistics of cleaning fundamentally differentiate the two systems.
- Ground-Mounted Maintenance: This is highly efficient. Wide aisles between panel rows allow for the rapid deployment of automated, robotic dry-cleaning tractors or simple manual washing crews using water trucks.
- Rooftop Maintenance Nightmare: Solar panel cleaning UAE protocols for rooftops are logistically brutal. Navigating a crowded roof with water hoses is dangerous and slow. Furthermore, strict rooftop solar maintenance safety laws require developers to install expensive, certified aluminum walkways and safety lifeline fall-arrest systems so maintenance crews can clean the panels without risking a fatal fall off the edge of the warehouse.
Fire Safety and Civil Defense (DCD) Compliance
The introduction of high-voltage DC electricity onto a building’s roof presents a significant fire hazard. Local authorities enforce rigorous safety codes to protect occupants and first responders.
DCD solar regulations (Dubai Civil Defense) are notoriously strict regarding rooftop solar installations.
- Firemen Pathways: The design must leave wide, clear pathways (typically 1.5 to 2 meters) around the perimeter of the roof and between panel arrays to allow firefighters to access the roof and ventilate smoke if a fire breaks out inside the building.
- Rapid Shutdown: The most critical electrical requirement is the rooftop solar rapid shutdown system. Because solar panels generate lethal voltage as long as the sun is shining, firefighters must be able to hit a single emergency switch at the ground level that instantly drops the DC voltage on the roof to a safe level (under 30V), preventing them from being electrocuted while fighting a blaze. Ground-mounted systems, isolated in an empty field, have a vastly lower fire liability profile and fewer spatial restrictions.
Project Execution and Facility Disruption
The actual construction phase of the solar plant impacts the daily operations of the commercial business differently based on the mounting location.
Building a ground-mounted system is effectively an isolated construction site. The civil and electrical contractors operate in a separate field, keeping heavy machinery and personnel completely away from the client’s daily logistics and warehouse operations.
Conversely, executing a rooftop build is highly disruptive. It requires craning materials over active loading docks and managing contractors inside the facility. Most critically, it requires flawless Electrical Construction & Commissioning Management. Executing a live panel solar tie in—connecting the new solar inverters to the building’s main switchgear—must be timed perfectly during off-hours or weekends to ensure the solar project management UAE team does not accidentally trip the main breakers and plunge the active commercial facility into a blackout.
Scalability and Future Expansion
When investing in renewable energy, businesses must look 10 to 15 years into the future. As the company grows, its energy demand will grow.
- Rooftop Limitations: A roof is a rigid, finite space. Once you fill the available square footage, expansion is physically impossible.
- Ground-Mounted Modularity: Ground mounts offer a highly scalable solar design. If the business secures adjacent land, the solar plant can grow modularly. Proactive solar expansion planning allows engineers to pre-size the main 11kV substation and cable trenches during the initial build. When the business expands five years later, they can simply bolt on more ground racks and plug in new inverters without redesigning the core electrical infrastructure.
Frequently Asked Questions (FAQ)
1. Are ballasted rooftop mounts safe in UAE windstorms?
Yes, but they must be engineered perfectly. Structural engineers use advanced wind tunnel simulation software to calculate the exact aerodynamics of the roof. They determine the precise weight (in kilograms of concrete blocks) required for every single mount to ensure the panels do not lift off or shift during the high-wind Shamal storms common in the UAE.
2. What is a “Rapid Shutdown” device?
A rapid shutdown device is a safety switch required by fire codes. Solar panels produce high-voltage DC electricity as long as the sun is shining, even if the building’s main power is off. A rapid shutdown system isolates the panels at the module level, dropping the voltage on the roof cables to a safe, non-lethal level so firefighters can safely walk on the roof and spray water.
3. Do I need DCD approval for a ground-mounted solar plant?
While ground-mounted systems have fewer spatial restrictions than rooftops (like firemen walkways), they still require full approval from Civil Defense. This includes approvals for the layout, the fire suppression systems inside the main inverter stations or 11kV substations, and clear access roads for heavy fire trucks to navigate around the solar array.
4. Which is more expensive to build: Rooftop or Ground-Mounted?
Typically, a ground-mounted system has a higher upfront CAPEX (Capital Expenditure). It requires extensive civil works (leveling the earth, driving steel piles), extensive trenching for cables, and often a more expensive high-voltage grid connection. Rooftop systems avoid land prep and utilize the building’s existing low-voltage electrical room, making them cheaper to build per kilowatt.
5. Why can’t I tilt my rooftop panels to the perfect 25-degree angle?
If you tilt solar panels at a steep angle on a flat commercial roof, they act like massive sails. The wind uplift forces would be so extreme that the roof structure would likely fail. Furthermore, steeply tilted panels cast long shadows behind them, meaning you would have to leave massive, empty gaps between the rows of panels, drastically reducing the total number of panels you could fit on the roof.
Choosing Your Solar Strategy
The decision between a rooftop and a ground-mounted solar array is the foundational choice that dictates the engineering complexity, safety profile, and long-term financial yield of your renewable energy investment.
Rooftops are ideal for businesses prioritizing the maximization of existing real estate and seeking a lower-CAPEX entry into solar generation, provided the structural integrity and fire compliance are rigorously engineered. Ground-mounted systems are the superior choice for heavy industrial consumers seeking absolute maximum yields, easier long-term maintenance, and the modular flexibility to scale their power generation alongside their business growth.
